How to integrate Flotiq with Webstudio

Learn how to integrate Flotiq with Webstudio to build dynamic, content-driven websites—visually.

This guide demonstrates how to integrate Flotiq with Webstudio to build a fully dynamic, content-driven website.

What is Flotiq?

Flotiq is a headless CMS designed to make content management simple and powerful. It allows you to create, manage, and deliver content through APIs, offering flexibility and scalability.

Paired with Webstudio, you can design dynamic frontends while keeping content stored and managed in Flotiq.

Prerequisites

Before starting, ensure you have the following:

• Flotiq account – Register here.

• Flotiq API Key – Learn more about Flotiq API Keys.

• Webstudio account – Sign up here.

Webstudio’s Pro tier plan is required to use the Resource feature. Flotiq does not require a paid plan.

1. Setting up Flotiq

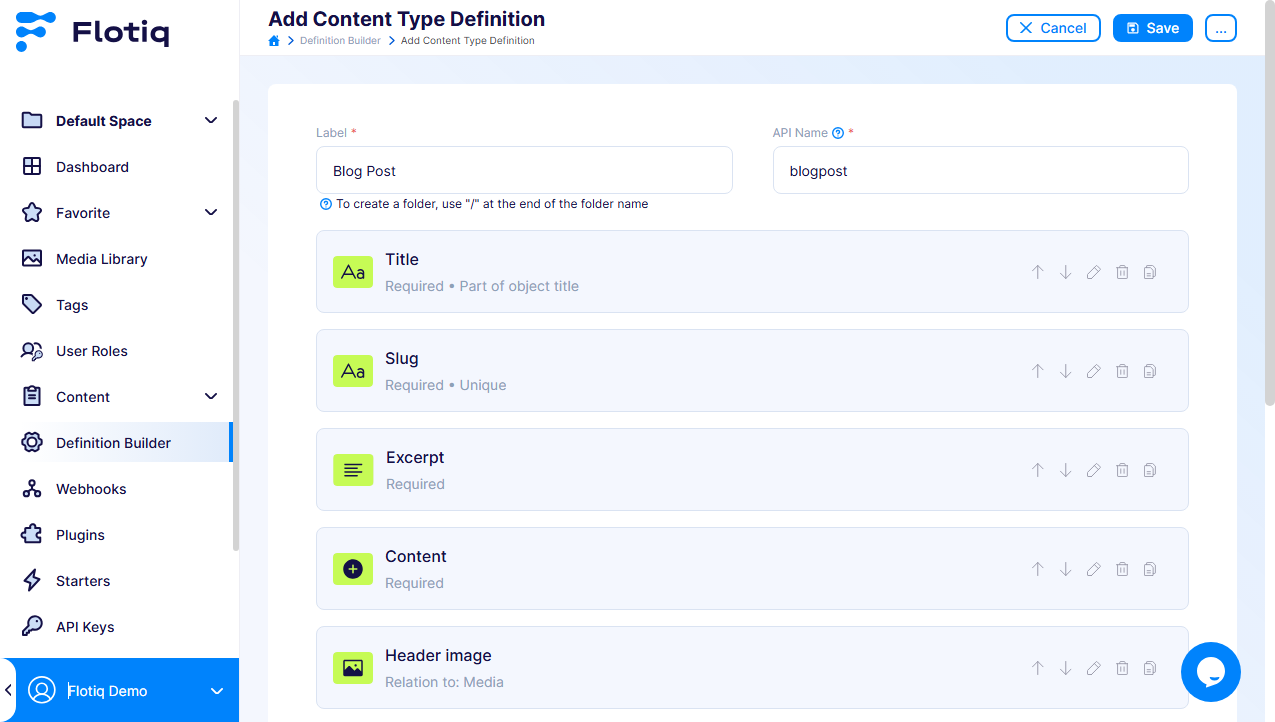

Create a content type

Start by creating a content type in Flotiq. For this tutorial, we’ll use Flotiq’s Blogpost Template, which includes fields like title, slug, excerpt, content, and headerImage.

Add sample data

Populate your content type with a few example blog posts to test your integration.

2. Setting Up Webstudio

Create a new project

1. Log in to Webstudio and either create a new project or edit an existing one.

2. Choose a template or start with a blank project.

Create a Dynamic Page

Dynamic pages in Webstudio allow you to create a single template that dynamically changes based on the currently viewed URL.

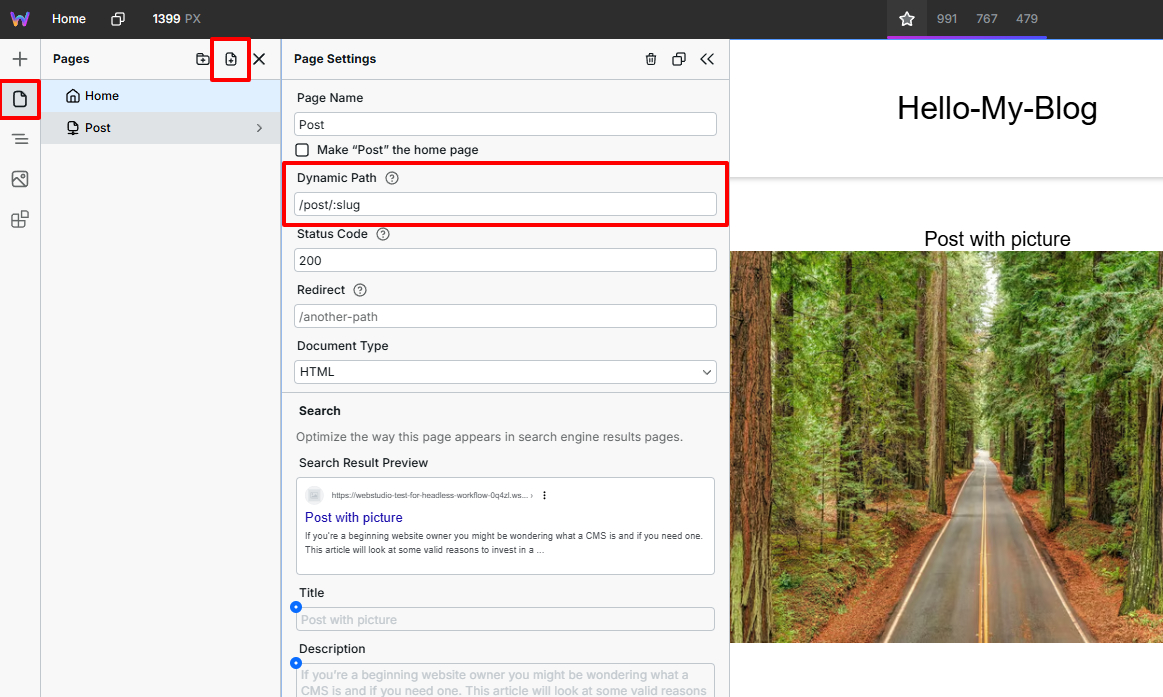

To create a page with a dynamic path, go to Pages > Add New Page. In the Dynamic Path field, use a parameter to represent the dynamic part of the URL, such as the slug of your blog posts.

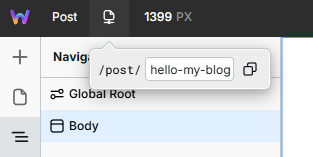

In the Address Bar, provide a test value.

Add a GraphQL Data Variable

GraphQL data variables fetch external content.

Go to Page Settings > Data variables > Add New Variable.

Next, configure the variable:

• Name: A custom name for the variable.

• Type: Use GraphQL for this integration.

• URL: Set to https://api.flotiq.com/api/graphql.

• Headers: Add a header with X-Auth-Token as the key and your Flotiq API Key as the value.

• Query: Use a GraphQL query to fetch data. Here’s an example for the Blogpost template:

  query Post($slug: String = "") {
    blogpost(field: "slug", value: $slug) {
      id
      title
      slug
      excerpt
      headerImage {
          alt
          url
      }
    }
  }

• GraphQL Variables: Bind the slug from the dynamic path:

  {
    "slug": system.params.slug
  }

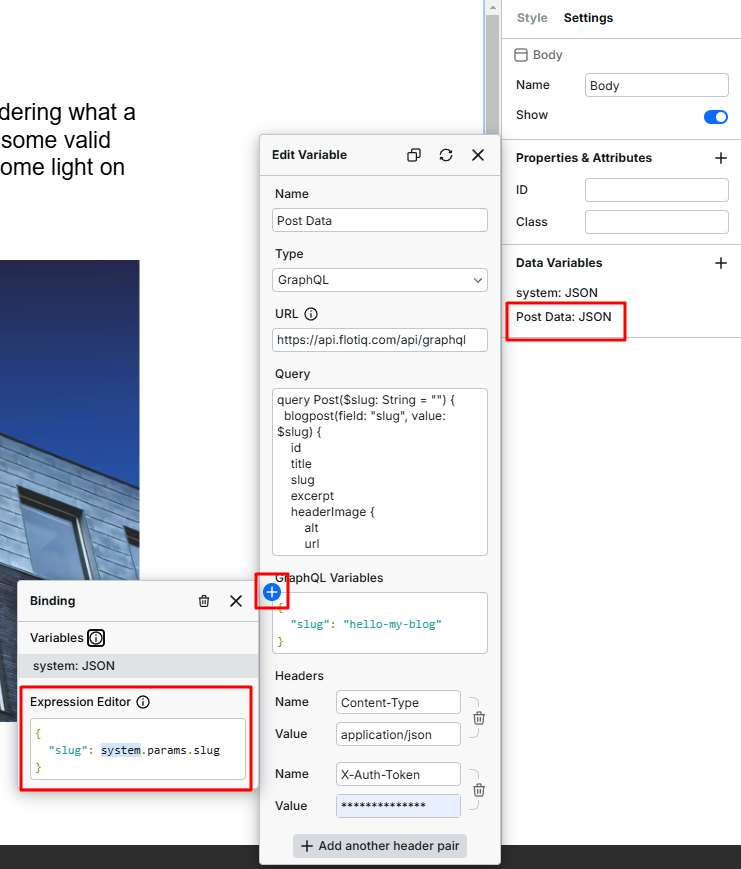

The variable should be configured as shown in the screenshot below:

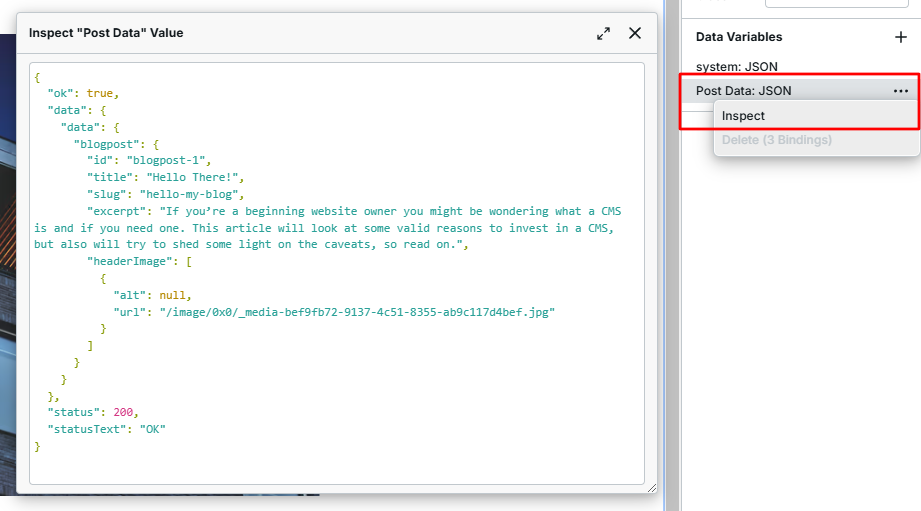

Test the variable - if it is configured correctly, the fetched Flotiq content will appear in the Inspect Tool.

Bind Flotiq data to your page

Once your Flotiq data is fetched, you can bind it to your components and page settings.

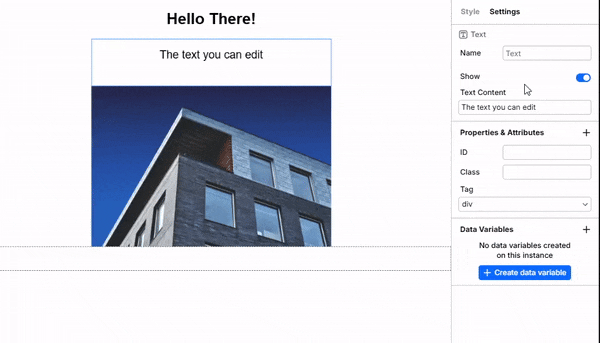

Bind data to components

Add components such as headings or images to your page.

To bind data:

• Select a component and navigate to its settings.

• Click the "+" button next to the desired property (e.g., Text Content).

• Open the Expression editor and map values from your Flotiq data variable, for example, VariableName.data.data.blogpost.title.

For images add an Image Component, and bind the Source Property to the image URL: "https://api.flotiq.com/" + VariableName.data.data.blogpost.headerImage[0].url.

Create a listing page

Showcase multiple content items, like blog posts or portfolio entries, on a single page by fetching and displaying a list of data.

Add a new Data Variable

This variable will fetch a list of all objects from your Flotiq content type. Example query for BlogpostList:

query Posts {
 blogpostList {
   id
   title
   slug
   excerpt
   headerImage {
       alt
       url
   }
 }
}

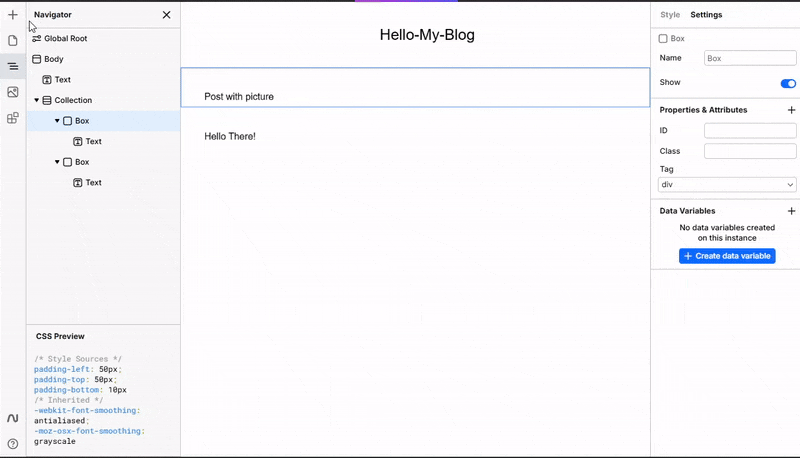

Add a collection component

• Bind the list (array) of items from the Data Variable to the collection: <Data Variable Name>.data.data.<Content Type API Name>List.

• The collection component iterates over each item and replicates your design. Bind the collectionItem to get the current iteration's data.

Customize the collection

Add components to the collection item (e.g., cards with titles, excerpts, and images). Editing one item applies the same layout to all items.

Conclusion

Now you should have your content from Flotiq displayed on Webstudio on both a listing page and a dynamic page that changes depending on the slug viewed.
